The Elite Suction Machine Package A2 is a high flow option that works with an air compressor (not included) and picks most Porous Slabs, Granite, Wet Cast & Natural Stone products. The extended arm is designed with an eye hook to attach to a machine using a strap or chain and easily allows the contractor to move around the stone/pad in an ergonomic way.
The Elite Suction Machine Package A2 is a high flow option. This system contains the Arm Bar, the HV Venturi, the Hose and the 16x18 pad. This system picks most Porous Slabs, Granite, Wet Cast & Natural Stone products. The extended arm is designed with an eye hook to attach to a machine using a strap or chain and easily allows the contractor to move around the stone/pad in an ergonomic way.
The Elite Suction Machine Package A2 is a high flow option that works with an air compressor (not included) and picks most Porous Slabs, Granite, Wet Cast & Natural Stone products. The extended arm is designed with an eye hook to attach to a machine using a strap or chain and easily allows the contractor to move around the stone/pad in an ergonomic way.
The Elite Suction Machine Package A2 is a high flow option that works with an air compressor (not included) and picks most Porous Slabs, Granite, Wet Cast & Natural Stone products. The extended arm is designed with an eye hook to attach to a machine using a strap or chain and easily allows the contractor to move around the stone/pad in an ergonomic way.

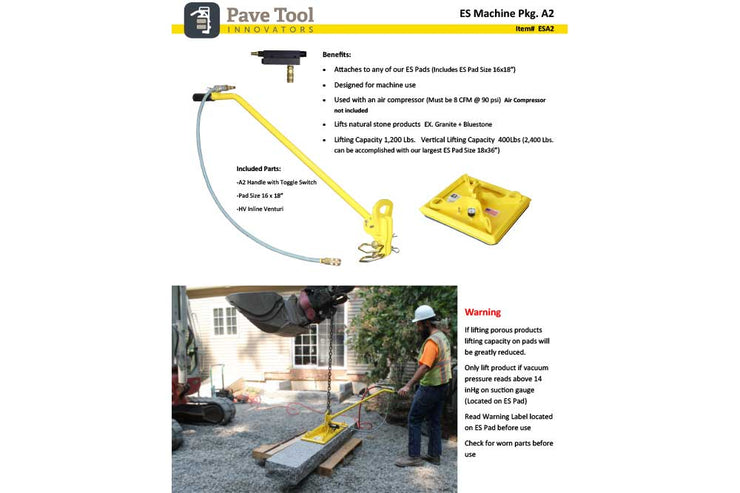

ES Machine Package A2 Specification Sheet

ES Machine Package A2

Item# ESA21

Regular price $1,549.95 USD

ES Machine Package A2

High-Flow Vacuum Lifting for Slightly Porous and Natural Stone Materials


The Elite Suction Machine Package A2 is built for pros who need a powerful, air-powered lifting solution. Ideal for slightly porous slabs, granite, bluestone, wet cast, and more, this machine-mounted vacuum system makes lifting and placing heavy materials efficient and ergonomic.

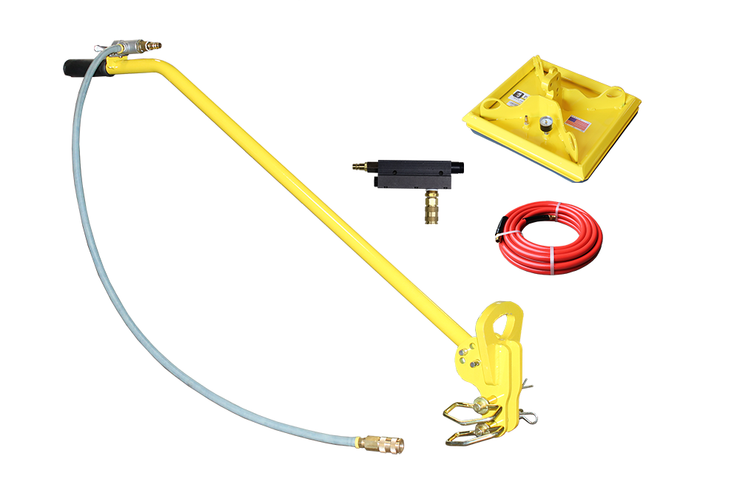

What’s Included:

  • Extended arm with eye hook + On/Off switch

  • HV Venturi (high-flow vacuum generator)

  • 25' vacuum hose

  • 16"x18" ES suction pad


🧱 Lifts:

  • Granite

  • Bluestone

  • Wet Cast

  • Natural Stone

  • Manufactured Pavers


Pair with your air compressor and lift like a pro. Designed for machine use with chains or straps, this package gives you control, power, and safety all in one.

Pairs well with: Quick-E-Adjustable Chain

*Requires 8 CFM @ 90 PSI Air Compressor (Not Included)

↑ See page 10 for setting up your A2 Package ↑

Pad Size

Item#

Picks Slightly Porous

Picks Non-Porous

12 x 12

ES006

65 lbs.

470 lbs.

16 x 18

ES004

130 lbs.

1,200 lbs.

12 x 36

ES005

280 lbs.

1,640 lbs.

20 x 28

ES021

370 lbs.

2,000 lbs.

18 x 36

ES003

440 lbs.

2,400 lbs.

Slim Pad 8 x 18
with Adapter

SP101

65 lbs.

350 lbs.

30 x 36

ES0011

770 lbs.

4,500 lbs.

30 x 48

ES0012

1,040 lbs.

6,000 lbs.
